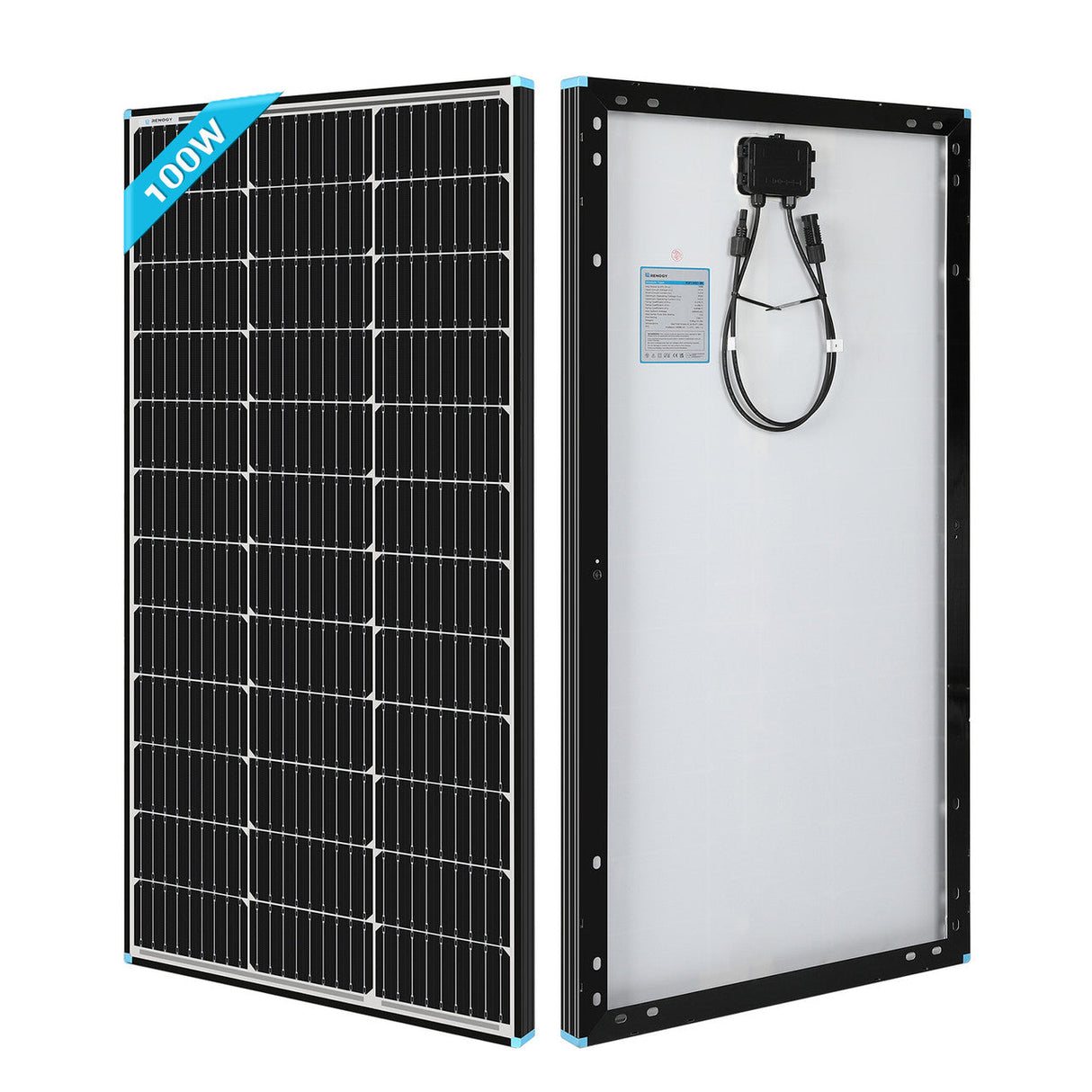

100 Watt 12 Volt Monocrystalline Solar Panel (Black Frame)
100 Watt 12 Volt Monocrystalline Solar Panel (Black Frame) is backordered and will ship as soon as it is back in stock.
Description
The Renogy 100 Watt 12 Volt Monocrystalline Solar Panel is the perfect solution for off-grid applications! Powerful yet compact in size, this 100W solar panel is a favorite for RVs, boats, campers, and similar uses, providing excellent efficiency for its size. Ideal for starting a new project or expanding an existing one, the Renogy 100W Monocrystalline Solar Panel will not disappoint.
If you have any questions regarding this product, please submit a case !
Key Features

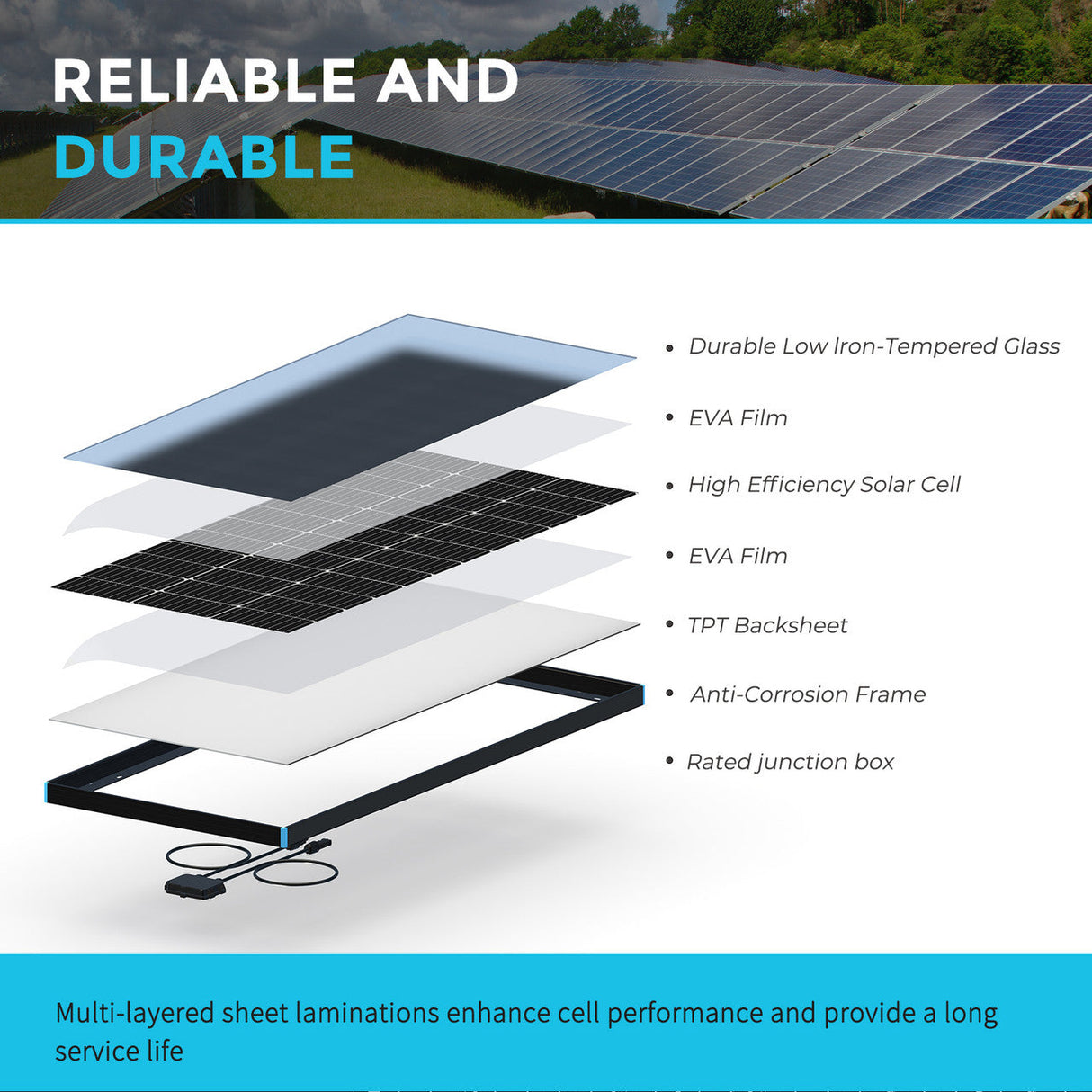

Reliable- Advanced encapsulation material with multi-layered sheet laminations enhances cell performance and provides a long service life.
- EL tested solar modules; no hot-spot heating is guaranteed.

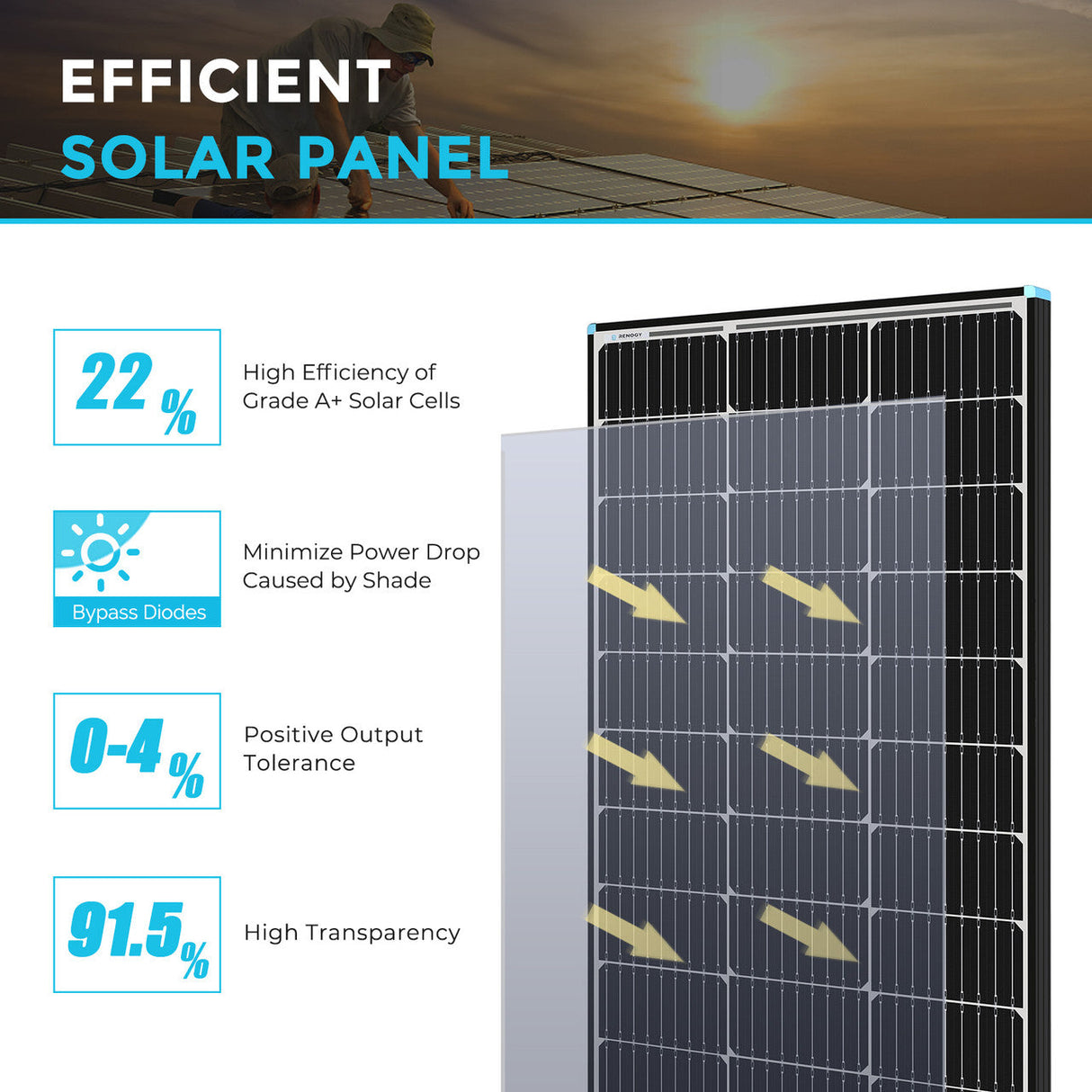

- Bypass diodes minimize power drop caused by shade.
- TPT back sheet ensures smooth performance over a long period of time.

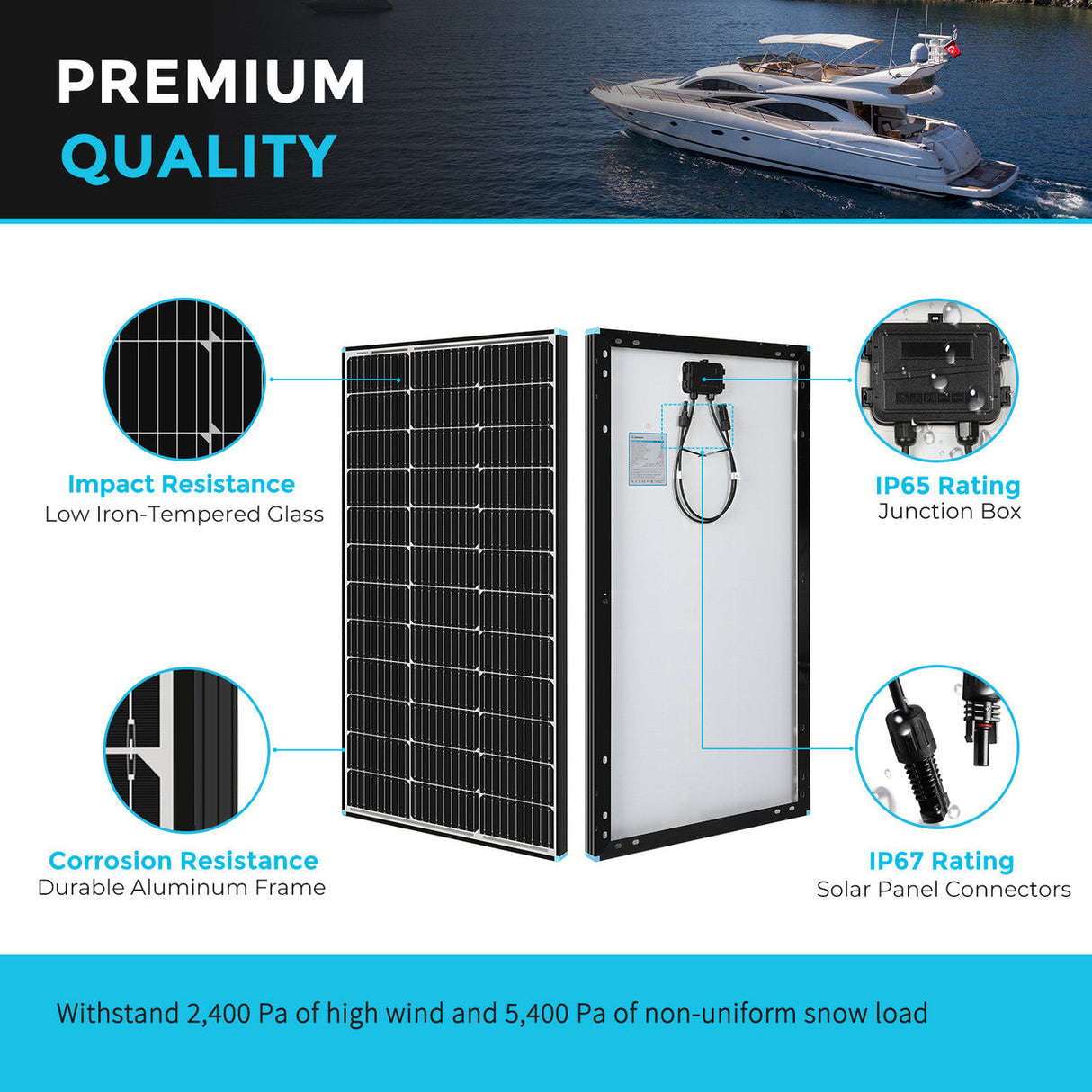

- Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).
- Corrosion-resistant aluminum frame allows extended outdoor use; panels can last for decades.
- Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance.
- IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets.
- Can be used for many different applications
- Ground mount compatible
- Compatible with on-grid and off-grid inverters

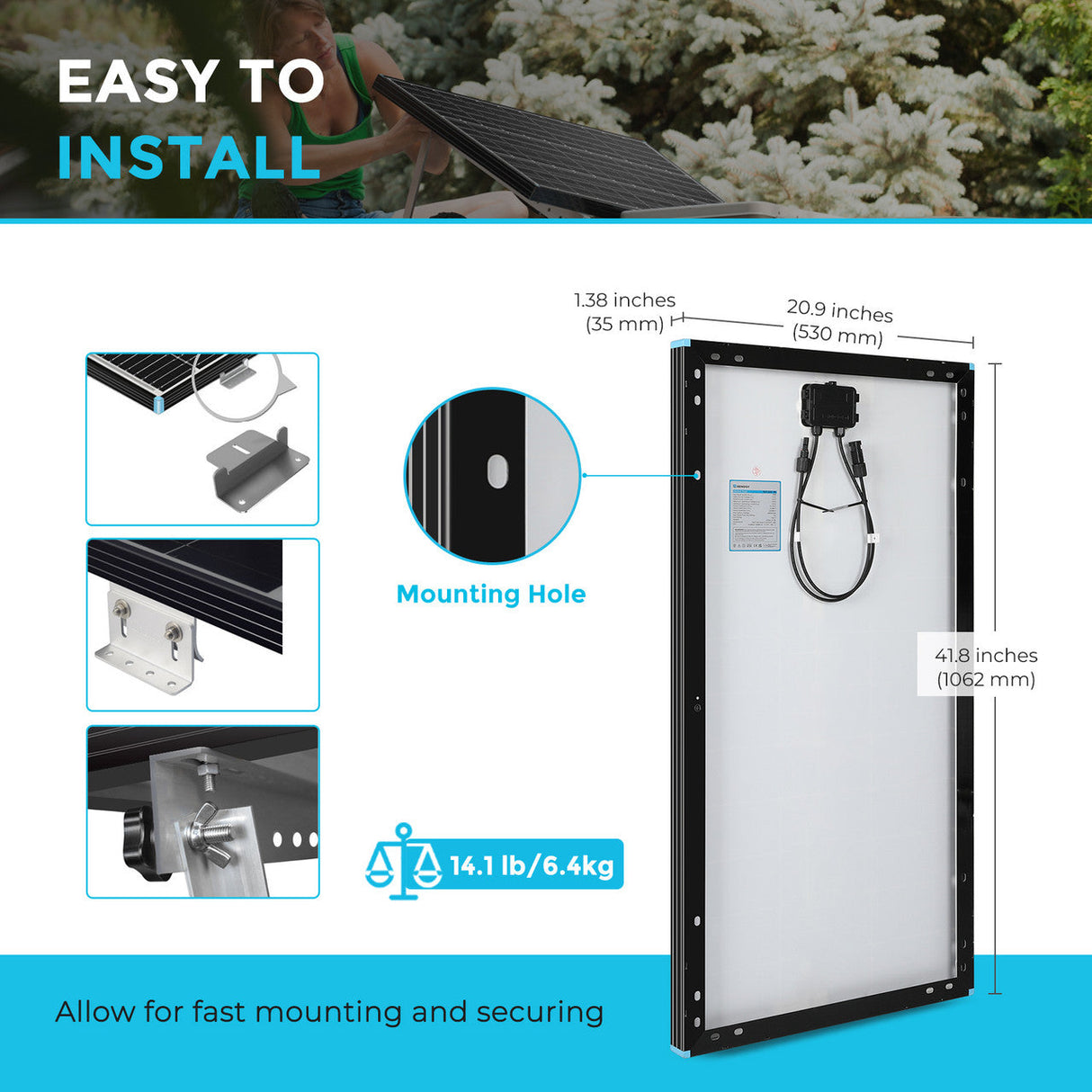

- Pre-drilled holes on the back of the panel allow for fast mounting and securing.
- Pre-drilled holes included for grounding.
- Compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.
Package Includes
Renogy 100W 12V Mono Solar Panel (black frame) 1 x |
Specifications | |
---|---|
Maximum Power at STC: 100 W | Open Circuit Voltage: 24.3 V |
Short Circuit Current: 5.21 A | Optimum Operating Voltage: 20.4 V |
Optimum Operating Current: 4.91 A | Operating Temperature: -40°C to + 90°C |
Dimensions: 1062*530*35 mm / 41.8*20.9*1.38 in | Weight: 6.4 kg |
Solar Cells: 32 Cells | Cables: 14 AWG (2 ft long) |
Junction Box: IP65 | Connectors: MC4 Connectors |
Cell Efficiency: 21.00% | Maximum System Voltage: 600 VDC UL |
Maximum Series Fuse Rating: 15A |
Warranty Information
Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
Accessories | 1-year material warranty |
Certification
![]() |
